1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT

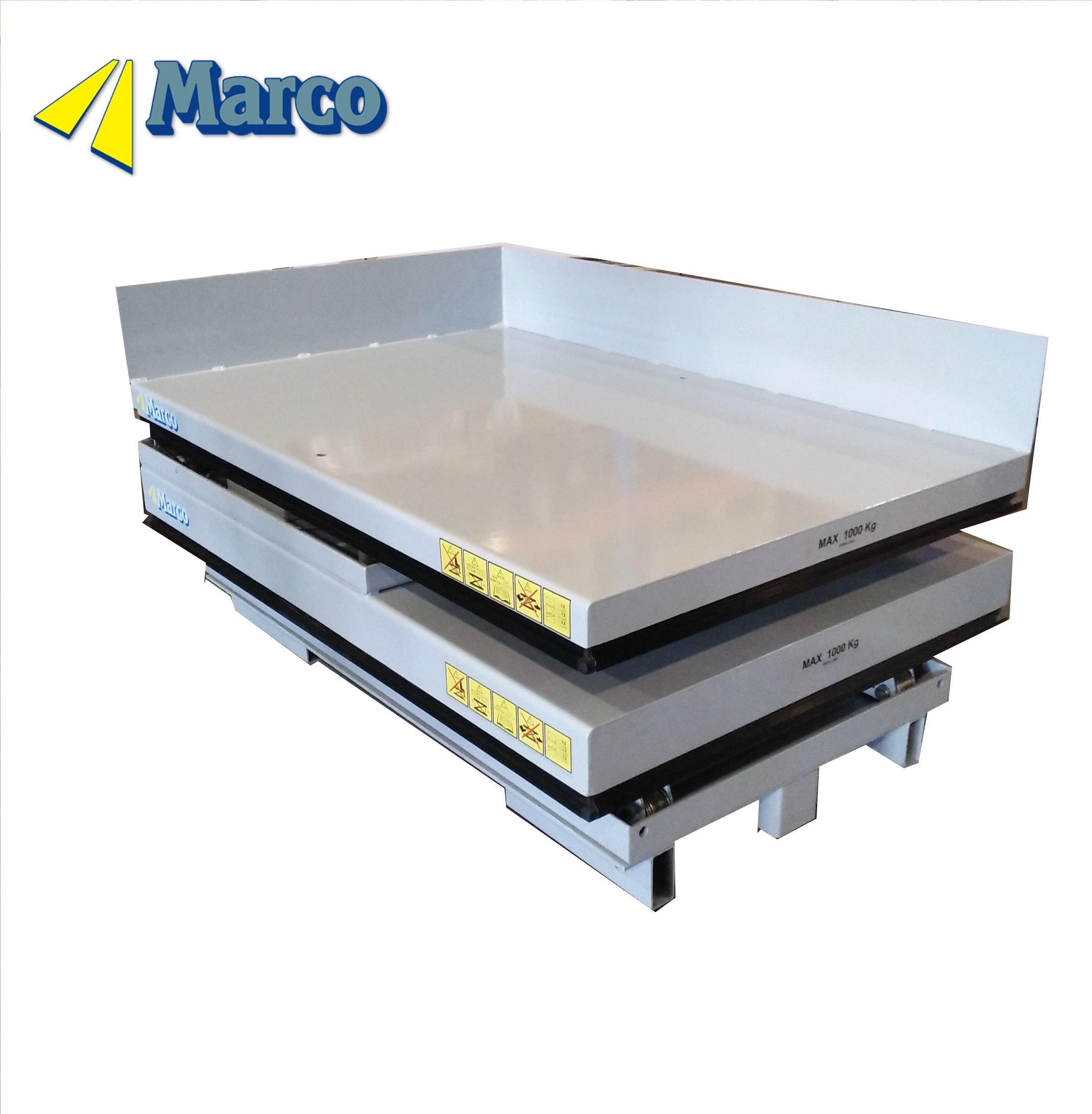

Large Image : 1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT

Product Details:

Certification:	CE, ISO 9001

Contact Now

1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT

Description

Model NO.:	M2-010090-D2+MT	Product Name:	Marco Hydraulic Tilt Scissor Lift Table
Capacity:	1000kg	Lift Stroke:	900mm
Close Height:	410mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table

Product Description

Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table

SPECIFICATION
Capacity (Kg):	1000	Rated current (A):	2,4
Stroke (mm):	900	Control voltage (V):	24 AC
Closed height (mm):	410	Power pack location:	INT
Platform length (mm):	1500	Protection class:	IP55
Platform width (mm):	1000	Hydraulic oil:	K2
Lifting time (s):	20	Surface treatment:	ISO 32
Output (kW):	0.75	Colour:	RAL7040
Power supply (V):	3x400 AC	Lift category:	3
Frequency (Hz):	50	Declaration:	IIA
Frequency (Hz):	50	Declaration:	IIA

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
