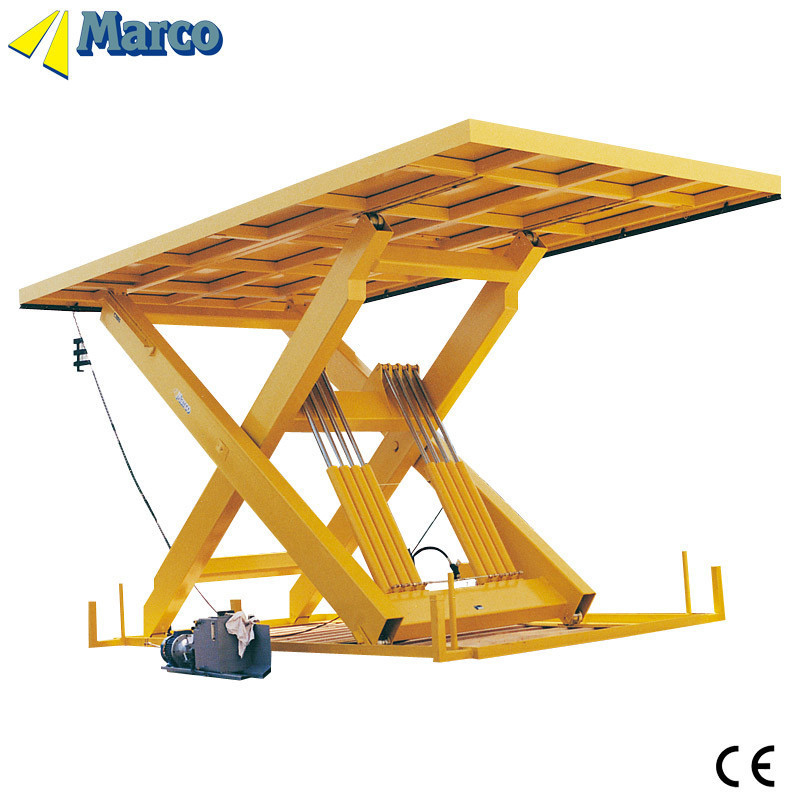

CE Approved Stationary Hydraulic Marco Single Scissor Lift Table with Hydraulic Drive

Large Image : CE Approved Stationary Hydraulic Marco Single Scissor Lift Table with Hydraulic Drive

Product Details:

Certification:	CE

Contact Now

CE Approved Stationary Hydraulic Marco Single Scissor Lift Table with Hydraulic Drive

Description

Feature:	Insulating	Transport Package:	Wooden Pallet
Specification:	CE	Trademark:	Marco
Origin:	Ningbo, China	HS Code:	8428909090
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas!
The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance.

Main Specification:
1.Standard Options

Pump: Europe brand
Control box- dead man control with up/down/E-stop

Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve

Sealing kit for cylinder: SKF brand

Motor: Hoyer motor, protection IP55

Scissor arm: Q345B

Hydraulic hose/fitting: Eaton

Paint: Finland brand - Tikkurila

2.Options extra:Depends on your require

Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)

Hot sales for 6 Ton Marco single lift table with CE approved:
Art.No.	Type	Capacity ( kg)	Platform (L*W)	Lift Height (mm)	Own Height (mm)	Lift time (s)	Motor (kw)	Weight (kg)
860070	M4-60130-D2	6000	2250*1200	1300	400	41	2.2	955
860071	M4-060160-D2	6000	2500*1200	1600	400	50	2.2	1035
