Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table for Smooth Stationary Lifting

Large Image : Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table for Smooth Stationary Lifting

Product Details:

Certification:	CE, ISO 9001

Contact Now

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table for Smooth Stationary Lifting

Description

Model NO.:	M0-002050-D1+ MT 002045-D1	Product Name:	Marco Ergonomic Hydraulic Tilt Scissor Goods Lift
Capacity:	200kg	Lift Stroke:	500mm
Close Height:	360mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table

Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table

Mechanical data
Capacity	200 Kg
Lift stroke	500 mm
Lifting time	8 s
Closed height	360 mm
Weight	310 Kg

Other

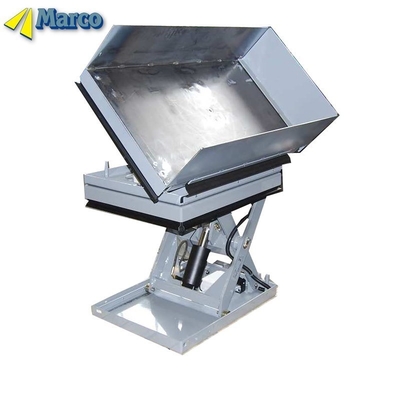

？Ergonomic compact lift table fitted with a tilt unit (45°) for optimal operator working height and is used in an assembly line.
？Roll off protection around the table is fixed at both long sides and removable at the short sides.
？The table and the tilt runs with a double hand control panel for high security.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
