Versatile Hydraulic Scissor Lift Platform with 3000kg Capacity and 2300mm Lift Stroke

Large Image : Versatile Hydraulic Scissor Lift Platform with 3000kg Capacity and 2300mm Lift Stroke

Product Details:

Certification:	CE, ISO 9001

Contact Now

Versatile Hydraulic Scissor Lift Platform with 3000kg Capacity and 2300mm Lift Stroke

Description

Model NO.:	M4-030230-D2/2H	Product Name:	Customized Hydraulic Scissor Lift Working Platform
Capacity:	3000kg	Lift Stroke:	2300mm
Close Height:	1200mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

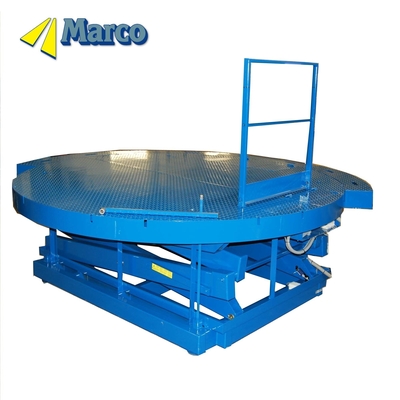

Customized Hydraulic Scissor Lift Working platform With Removable Segments

Product Description

Customized Hydraulic Scissor Lift Working platform With Removable Segments

Mechanical data
Capacity	3000kg
Platform size	Dia3100 or Dia3600mm
Lift stroke	2300mm
Lifting time	41s
Closed height	1200mm
Weight	2660kg

Other Description
This table will be used to brick up a furnace. It's operated by a built-in foot control.
The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
