Hydraulic Scissor Lift Mechanism Marco Circular 4 Stage Platform for Scene Performances

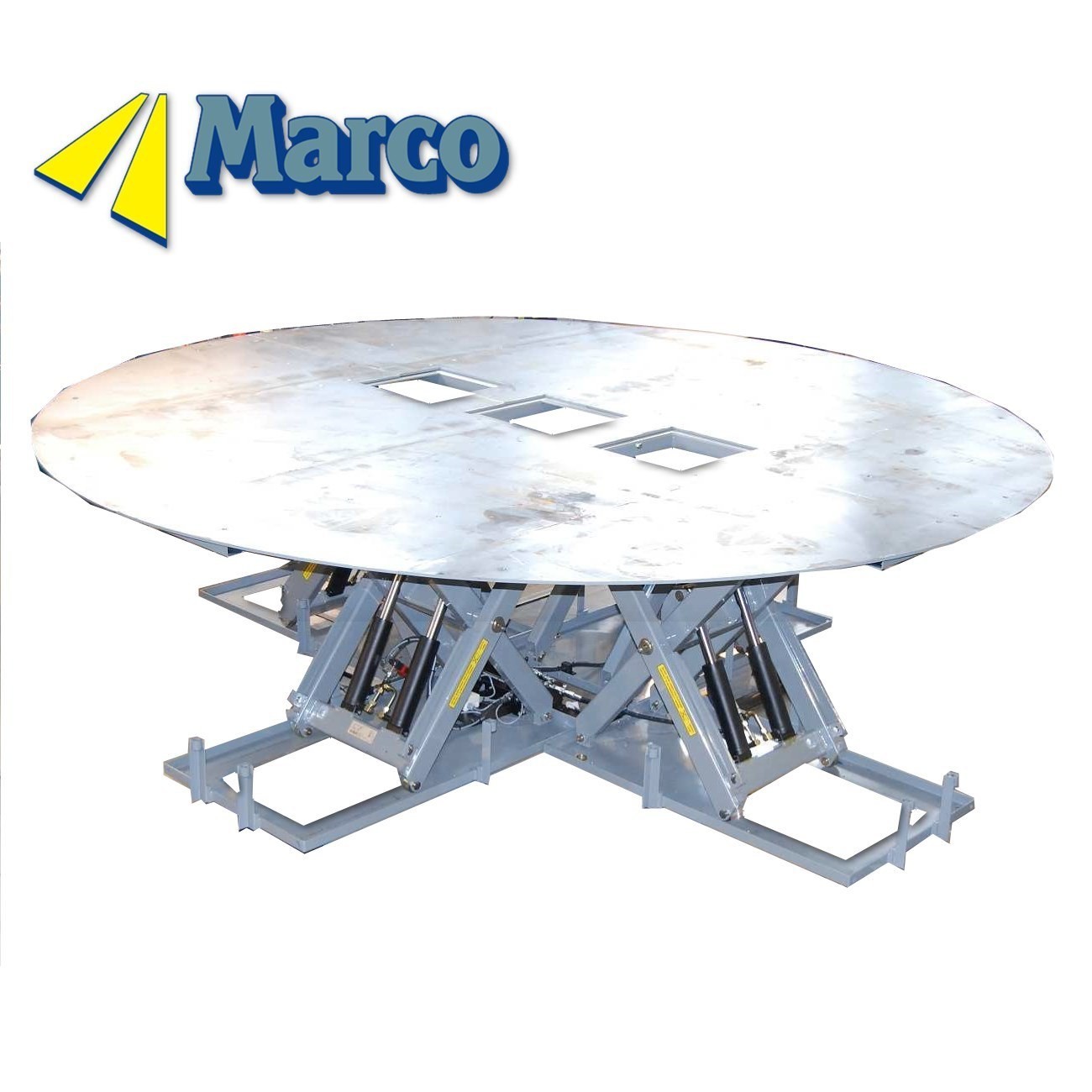

Large Image : Hydraulic Scissor Lift Mechanism Marco Circular 4 Stage Platform for Scene Performances

Product Details:

Certification:	CE, ISO 9001

Contact Now

Hydraulic Scissor Lift Mechanism Marco Circular 4 Stage Platform for Scene Performances

Description

Model NO.:	M2-020090-D8/2L	Product Name:	Marco Circular 4 Scissor Lift Table Stage Platform
Capacity:	2000kg	Lift Stroke:	900mm
Close Height:	245mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Circular 4 Scissor Lift Table Stage Platform for Scene Performances

Product Description

Marco Circular 4 Scissor Lift Table Stage Platform for Scene Performances

Mechanical data
Capacity	2000 kg
Frame size	1350 x 790 mm (x4)
Lift stroke	900 mm
Lifting time	39s
Closed height	245 mm
Weight	1680 kg

Other
Wooden floor will be placed on the circular platform so the table can be used as a dance floor.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
