Special Weight Level Marco Goods Lift Hydraulic Scissor Lift Platform at Two Fixed Levels

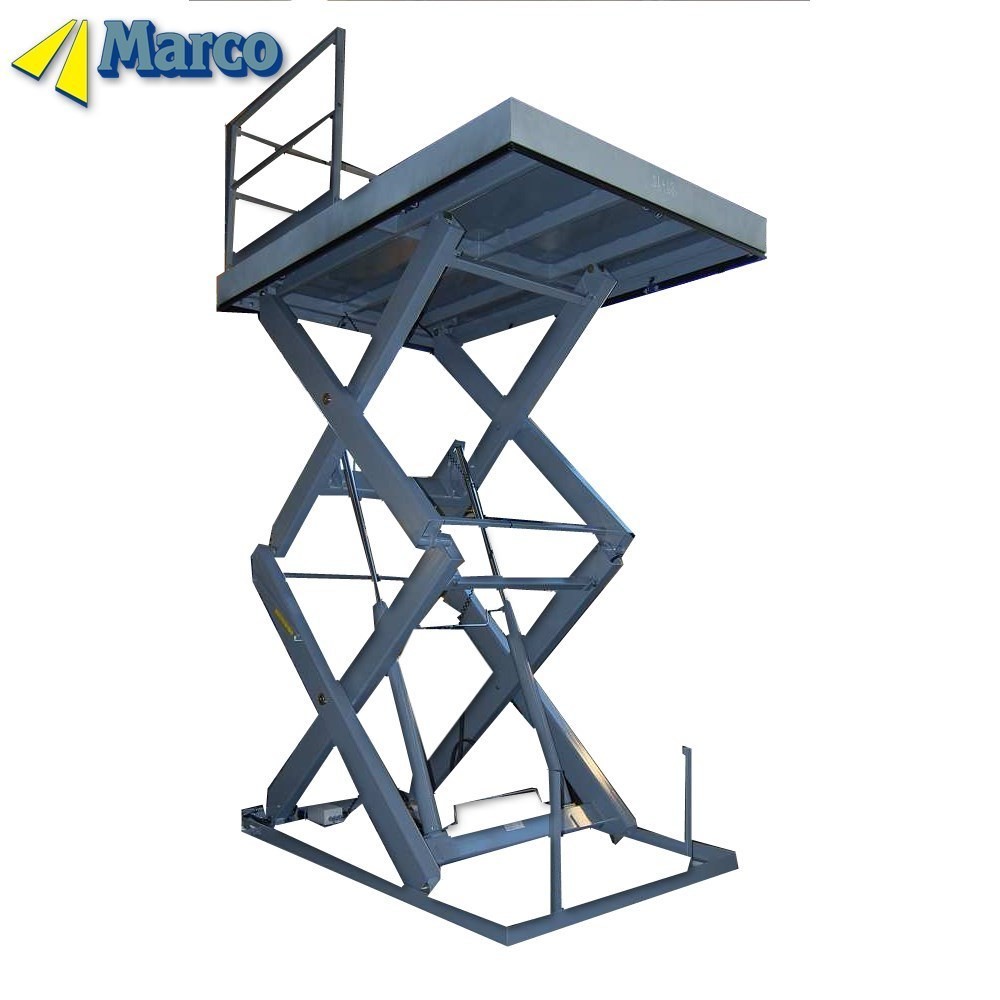

Large Image : Special Weight Level Marco Goods Lift Hydraulic Scissor Lift Platform at Two Fixed Levels

Product Details:

Certification:	CE, ISO 9001

Contact Now

Special Weight Level Marco Goods Lift Hydraulic Scissor Lift Platform at Two Fixed Levels

Description

Model NO.:	M4-020285-2D/2H	Product Name:	Marco Goods Lift Hydraulic Scissor Lift Platform
Capacity:	2000kg	Lift Stroke:	2850mm
Close Height:	700mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Goods Lift Hydraulic Scissor Lift Platform Between Two Fixed Levels

Product Description
Marco Goods Lift Hydraulic Scissor Lift Platform Between Two Fixed Levels

Mechanical data
Capacity	2000 Kg
Lift stroke	2850 mm
Lifting time	43 s
Closed height	700 mm
Weight	2050 kg

Accessories
？Twin boom barrier/handrails on platform
？Guide wheel roller, fitting in a guide channel in shaft, will stabilize platform in upper position from swinging in side direction

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
