Hydraulic Scissor Lift Building Crane for Turbines Assemblying Working Platform

Large Image : Hydraulic Scissor Lift Building Crane for Turbines Assemblying Working Platform

Product Details:

Certification:	CE, ISO 9001

Contact Now

Hydraulic Scissor Lift Building Crane for Turbines Assemblying Working Platform

Description

Model NO.:	M4-020290-D4/2B	Product Name:	Hydraulic Scissor Lift Working Platform
Capacity:	2000kg	Lift Stroke:	2900mm
Close Height:	650mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Hydraulic Scissor Lift Working Platform for Turbines Assemblying

Product Description
Hydraulic Scissor Lift Working Platform for Turbines Assemblying

Mechanical data
Capacity	2000 Kg
Lift stroke	2900 mm
Lifting time	53 s
Closed height	650 mm
Weight	5125 Kg

Other details

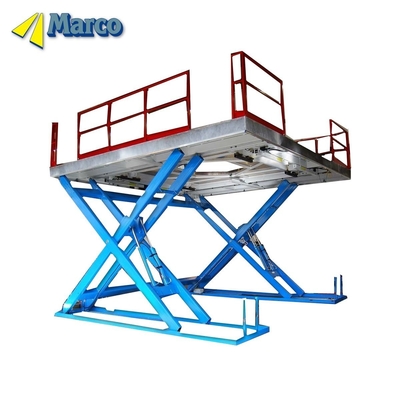

？ The table consist of 2 scissors and a working platform with 2 hydraulically driven flaps, making a hole in the middle.
？ The table simplifies the assembly of turbines.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
