Hydraulic Scissor Lift Table Customized 1200mm High Stand with Special Weight Level

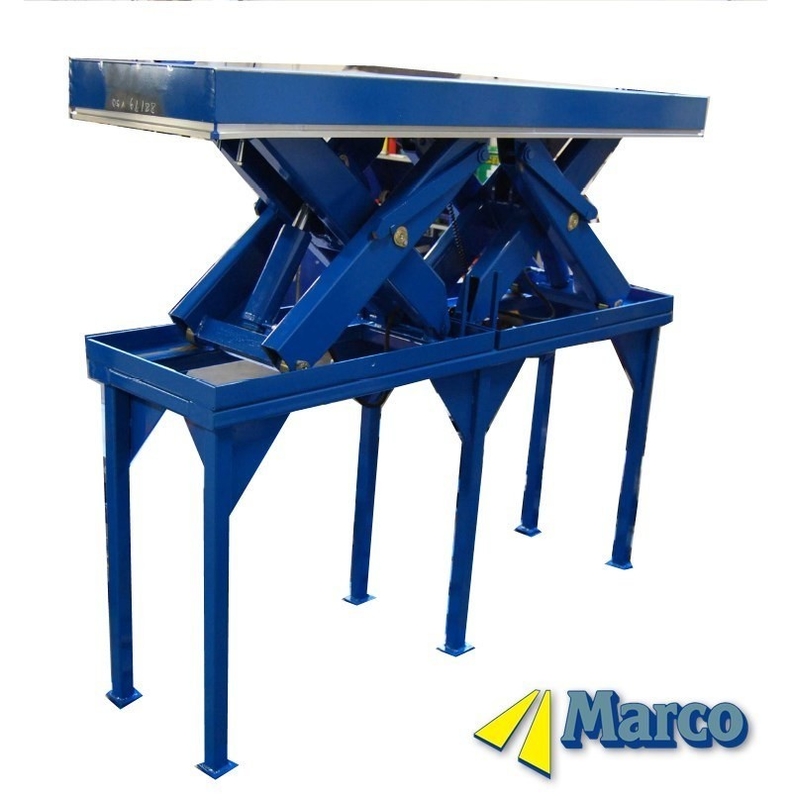

Large Image : Hydraulic Scissor Lift Table Customized 1200mm High Stand with Special Weight Level

Product Details:

Certification:	CE, ISO 9001

Contact Now

Hydraulic Scissor Lift Table Customized 1200mm High Stand with Special Weight Level

Description

Model NO.:	M3-040050-D2/2L	Product Name:	Customized A 1200mm High Stand For Hydraulic Sciss
Capacity:	4000kg	Lift Stroke:	500mm
Close Height:	400mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Customized A 1200mm High Stand for Hydraulic Scissor Lift Table

Product Description

Customized A 1200mm High Stand for Hydraulic Scissor Lift Table

Mechanical data
Capacity	4000kg
Lift stroke	500mm
Lifting time	16s
Closed height	400mm
Weight	590 kg

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
