900mm Close Height Marco Vertical Hydraulic Scissor Lift Work Platform for Stationary

Large Image : 900mm Close Height Marco Vertical Hydraulic Scissor Lift Work Platform for Stationary

Product Details:

Certification:	CE, ISO 9001

Contact Now

900mm Close Height Marco Vertical Hydraulic Scissor Lift Work Platform for Stationary

Description

Model NO.:	M5-030420-D2/2H	Product Name:	Marco Hydraulic Scissor Lift Work Platform
Capacity:	3000kg	Lift Stroke:	4200mm
Close Height:	900mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Vertical Hydraulic Scissor Lift Work Platform with Loading Flaps

Product Description

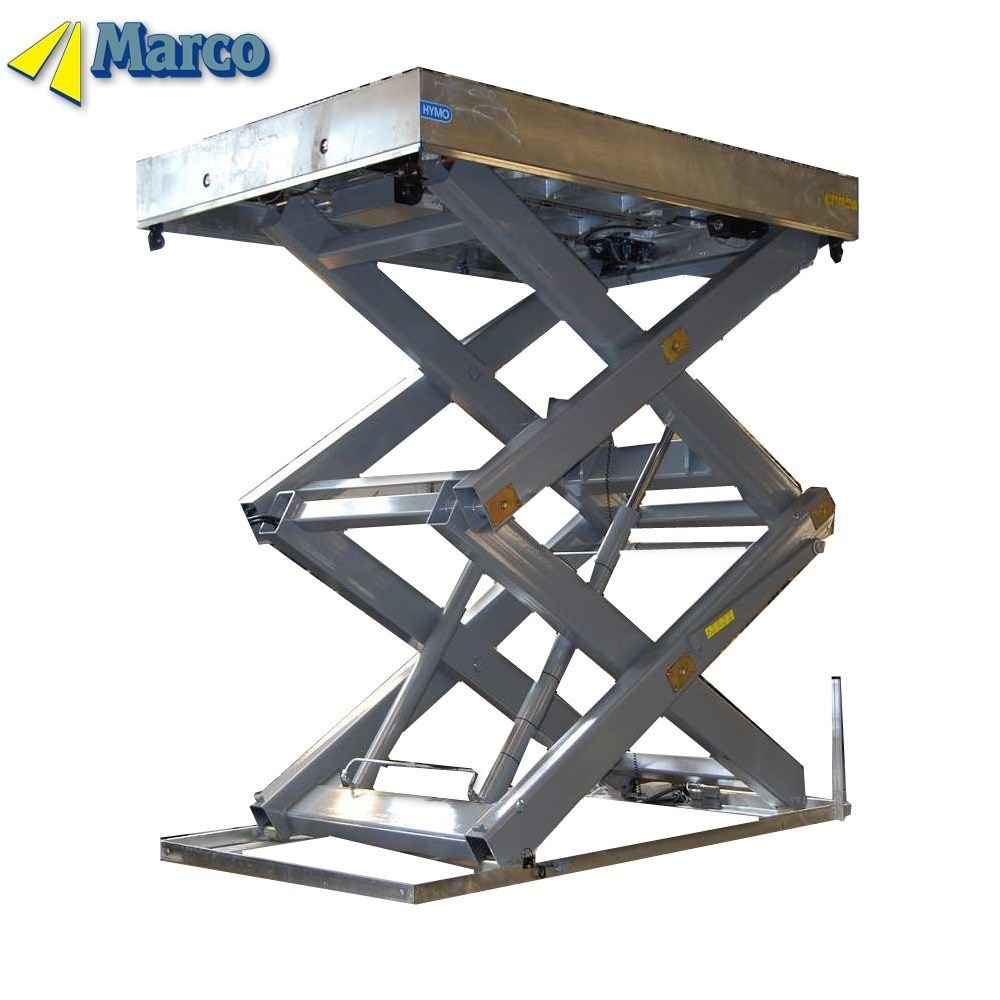

Marco Vertical Hydraulic Scissor Lift Work Platform with Loading Flaps

Mechanical data
Capacity	3000 kg
Lift stroke	4200 mm
Lifting time	51 s
Closed height	900 mm
Weight	3810 kg

Other

Middle level switches with inductive sensors results in a very accurate indication, which is needed in this case with hydraulic shot bolts in the platform.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
