Hydraulic Loading Dock Lift Table with Twin Boom Barrier Loading Flaps and Handrails Customization

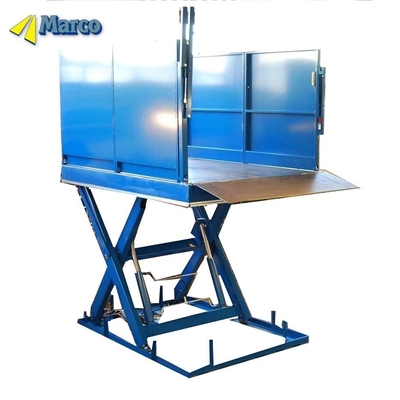

Large Image : Hydraulic Loading Dock Lift Table with Twin Boom Barrier Loading Flaps and Handrails Customization

Product Details:

Certification:	CE, ISO 9001

Contact Now

Hydraulic Loading Dock Lift Table with Twin Boom Barrier Loading Flaps and Handrails Customization

Description

Model NO.:	M3-030160-D2K	Product Name:	Hydraulic Loading Dock Lift Table
Capacity:	3000 Kg	Lift Stroke:	1600 Mm
Close Height:	305 Mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Hydraulic Loading Dock Lift Table with Twin Boom Barrier, Loading Flaps and Handrails

Product Description
Hydraulic Loading Dock Lift Table with Twin Boom Barrier, Loading Flaps and Handrails

Mechanical data
Capacity	3000 kg
Lift stroke	1600 mm
Lifting time	33 s
Closed height	305 mm
Weight	1170 kg

Other
Adjustable post for twin boom barrier. Push button box, gas spring and witch for boom barrier are all protected on platform.
Loading flap provided with 2 gas springs for balance folding torque.
Handrails with kick plate on inside and cover plate on outside.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
