Building Crane Scissor Lift Table for Swedish Church by Marco Customsized Hydraulic

Large Image : Building Crane Scissor Lift Table for Swedish Church by Marco Customsized Hydraulic

Product Details:

Certification:	CE, ISO 9001

Contact Now

Building Crane Scissor Lift Table for Swedish Church by Marco Customsized Hydraulic

Description

Model NO.:	M3-030045-D2	Product Name:	Marco Customsized Hydraulic Scissor Lift Table
Capacity:	3000kg	Lift Stroke:	450mm
Close Height:	280mm	Transport Package:	Wooden Pallet
Specification:	2700x2500 Mm	Trademark:	Marco
Origin:	Ningbo	HS Code:	8428909090
Supply Ability:	1200pieces/Year	Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift	Carrying Capacity:	Special Weight Level
Moves:	Stationary	Driven Type:	Hydraulic
Running Mode:	Stationary	Customization:	Available \| Customized Request

Marco Customsized Hydraulic Scissor Lift Table for Swedish Church

Product Description
Marco Customsized Hydraulic Scissor Lift Table for Swedish Church

Mechanical data
Capacity	3000 kg
Lift stroke	450 mm
Lifting time	16 s
Closed height	280 mm

Other

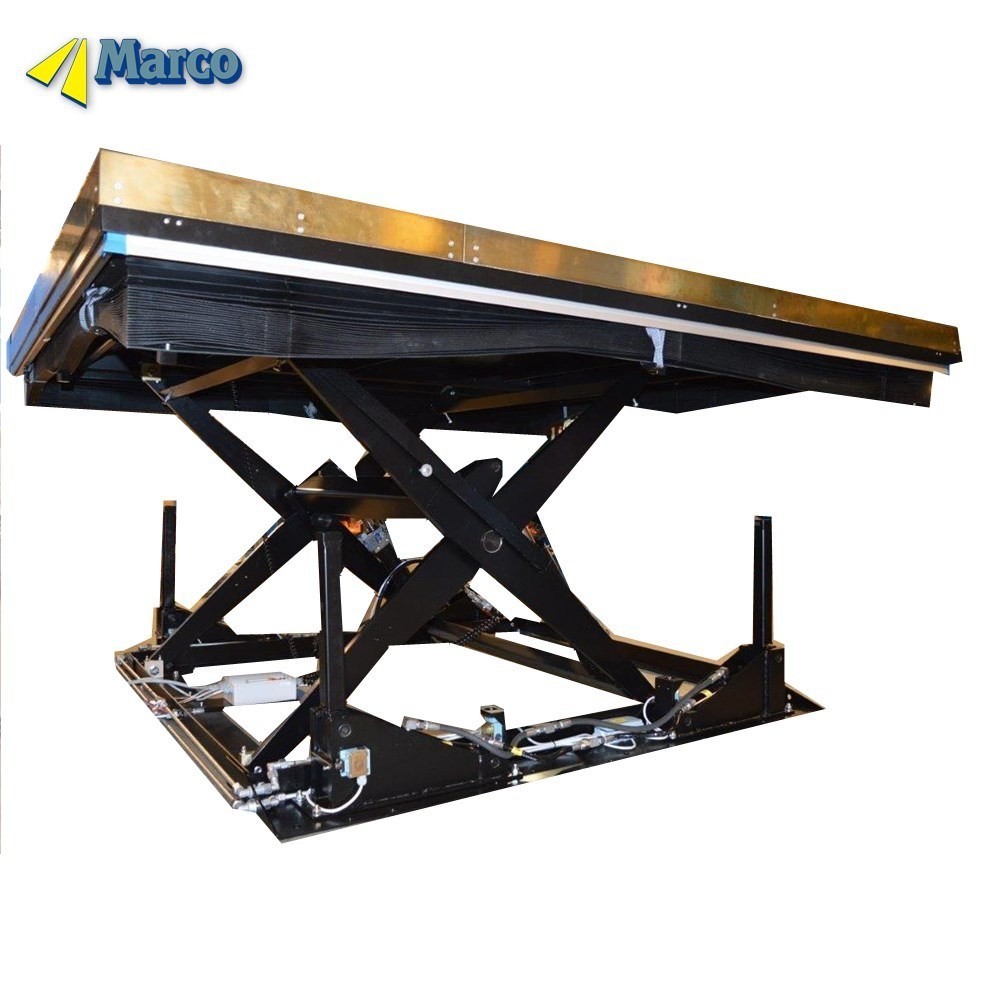

This scissor lift raises and lower the Church organ for a convenient height for the musicians The platform is covered with brass plates and the scissor mechanism is protected with a black bellow.
As extra security we have electro hydraulic operated support leg, securing the table for sinking at the top level.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
