Carrying Capacity Marco High Good Scissor Lift Table with Hydraulic Shot Bolts

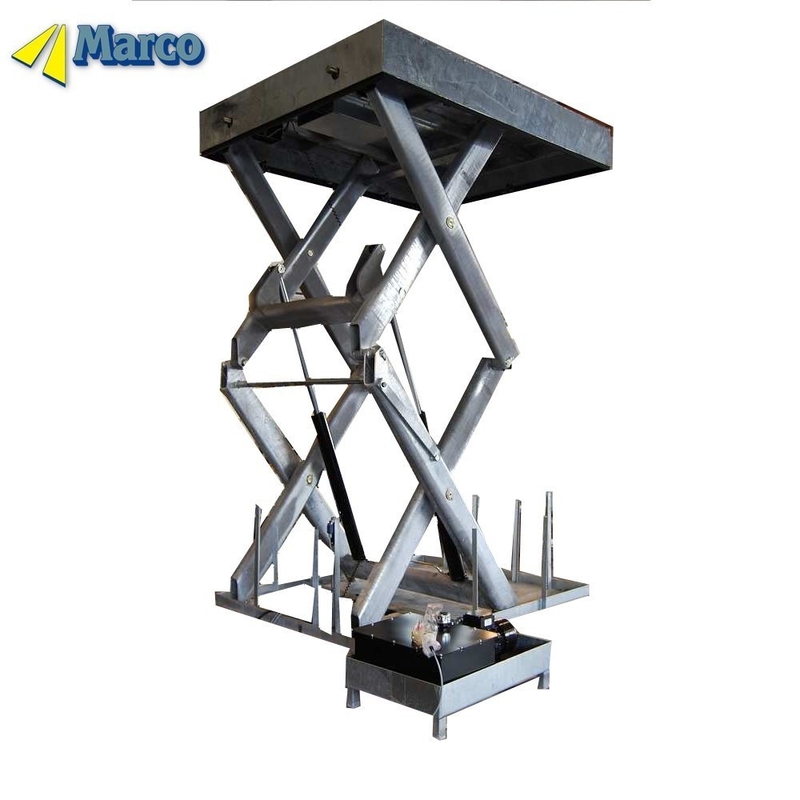

Large Image : Carrying Capacity Marco High Good Scissor Lift Table with Hydraulic Shot Bolts

Product Details:

Certification:	CE, ISO 9001

Contact Now

Carrying Capacity Marco High Good Scissor Lift Table with Hydraulic Shot Bolts

Description

Model NO.:	M4, 5-040300-D2/2H	Product Name:	Marco High Good Scissor Lift Table
Capacity:	4000kg	Lift Stroke:	3000mm
Close Height:	800mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco High Good Scissor Lift Table with Hydraulic Shot Bolts

Product Description
Marco High Good Scissor Lift Table with Hydraulic Shot Bolts

Mechanical data
Capacity	4000 kg
Lift stroke	3000 mm
Lifting time	53 s
Closed height	800 mm
Weight	2010 kg

Other
？ Overcrossable in lower position with 5000 kg
wheel pressure
？ Shot bolts including complete steering with PLC
？ Power pack with oil tray

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
