4500kg Capacity M5-045450-D2/3H Hydraulic Scissor Lift Table with European Efficiency

Large Image : 4500kg Capacity M5-045450-D2/3H Hydraulic Scissor Lift Table with European Efficiency

Product Details:

Certification:	CE, ISO 9001

Contact Now

4500kg Capacity M5-045450-D2/3H Hydraulic Scissor Lift Table with European Efficiency

Description

Model NO.:	M5-045450-D2/3H	Product Name:	4.5ton High Hydraulic Scissor Lift Table
Capacity:	4500kg	Lift Stroke:	4500mm
Close Height:	1500mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

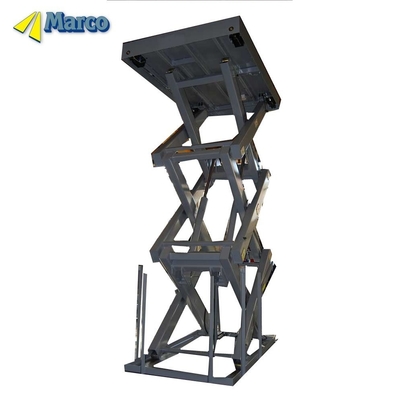

Marco 4.5 Ton High European Standard EN1570 Hydraulic Scissor Lift Table

Product Description
Marco 4.5 Ton High European Standard EN1570 Hydraulic Scissor Lift Table

Mechanical data
Capacity	4500 kg
Lift stroke	4500 mm
Lifting time	112 s
Closed height	1500 mm
Weight	3625 kg

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
