9000kg Capacity Heavy Duty Hydraulic Scissor Lift Table for Stationary Applications

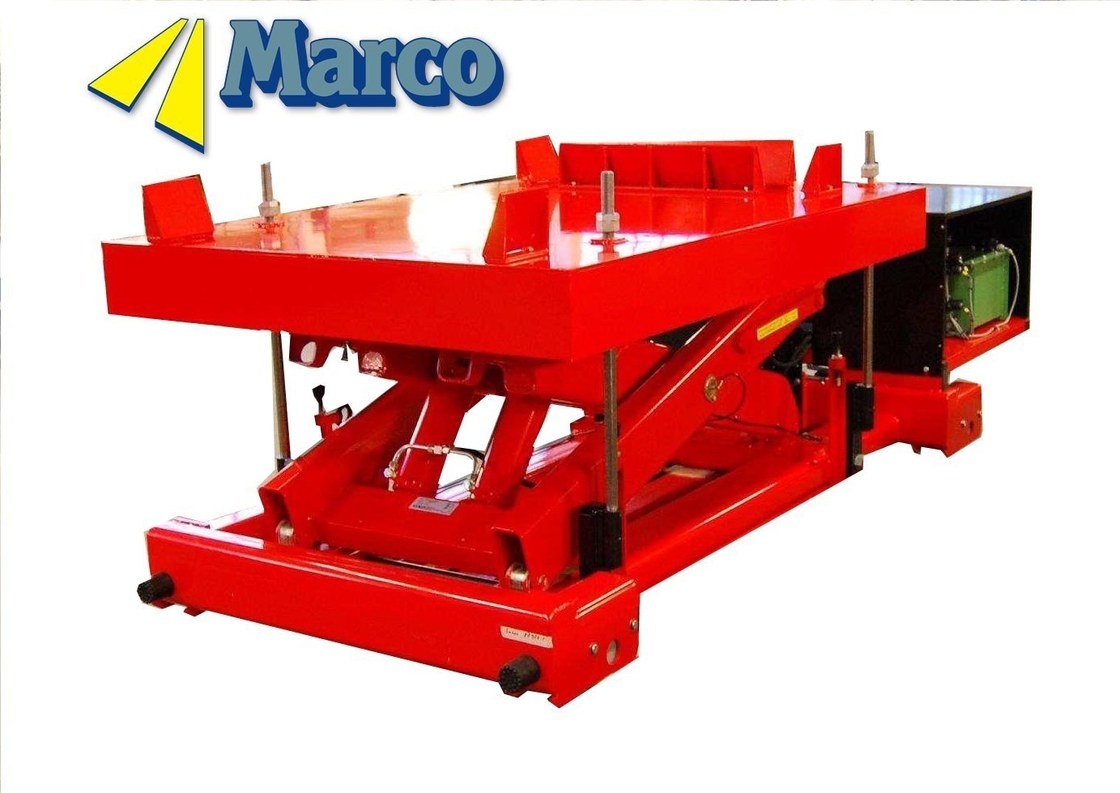

Large Image : 9000kg Capacity Heavy Duty Hydraulic Scissor Lift Table for Stationary Applications

Product Details:

Certification:	CE, ISO 9001

Contact Now

9000kg Capacity Heavy Duty Hydraulic Scissor Lift Table for Stationary Applications

Description

Model NO.:	M4, 5-090048-D2	Product Name:	Heavy Duty Robust Hydraulic Scissor Lift Table
Capacity:	9000kg	Lift Stroke:	475mm
Close Height:	540mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Heavy Duty Robust Hydraulic Scissor Lift Table

Product Description

Heavy Duty Robust Hydraulic Scissor Lift Table

Mechanical data
Mechanical data
Capacity	9000kg
Lift stroke	475mm
Lifting time	34s
Closed height	540mm (400+140)
Weight	1543kg

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
