Customizable Heavy Duty Mechanical Breaks and Hydraulic Lift Table Special Weight Level

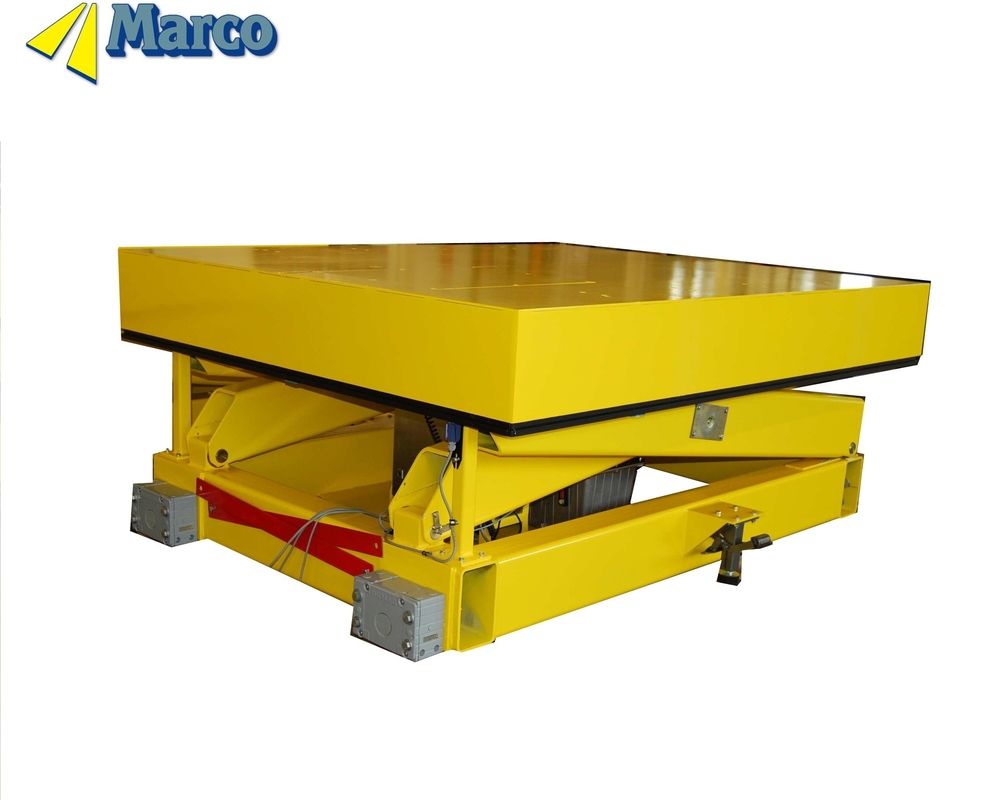

Large Image : Customizable Heavy Duty Mechanical Breaks and Hydraulic Lift Table Special Weight Level

Product Details:

Certification:	CE, ISO 9001

Contact Now

Customizable Heavy Duty Mechanical Breaks and Hydraulic Lift Table Special Weight Level

Description

Model NO.:	M5, 5-120040-D2	Product Name:	Heavy Duty Mechanical Breaks And Hydraulic Lift
Capacity:	12000kg	Lift Stroke:	400mm
Close Height:	1000mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Heavy Duty Mechanical Breaks and Hydraulic Lift Table

Product Description

Heavy Duty Mechanical Breaks and Hydraulic Lift Table

Table type	M5,5-120040-D2
Mechanical data
Capacity	12000kg
Lift stroke	400mm
Lifting time	17s
Closed height	1000mm (745+255)
Weight	2544kg

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
