M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock
M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock
M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Large Image :  M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Product Details:
Certification: GS, CE, ISO 9001
Contact Now

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Description
Model NO.: M6.5-100270-D22HK Lifting Height: 2700mm
Lifting Time: 60s Transport Package: Wooden Pallet And Steel Pallet, Wooden Case
Specification: 3000X3000mm Trademark: Marco
Origin: China HS Code: 84289090
Supply Ability: 1000 Warranty: 12 Months
Lift Mechanism: Scissor Lift Carrying Capacity: 2000kg
Moves: Stationary Driven Type: Hydraulic
Running Mode: Stationary Customization: Available | Customized Request

Product Description

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.

Product Parameters

Model No. M6.5-100270-D22HK Capacity 10000kg
Platform size 3000X3000mm Base Frame 3000x3000mm
Min. Height 1100mm Lifting Height 2700mm
Model Type stationary Lift Time 60s
Color  Grey/green/ blue/others Product name refer to product
Specifications Customizable Application material handling
Power Voltage  380V 50Hz Control Voltage 24V DC
Delivery Time 1 month Package  exported case
Trademark Marco HS Code 84289090
Orgin Made In China Production Capacity 100/month
Certificate ISO9001, CE, ISO3834, Design standard EN1570-1-2011

Detailed Photos

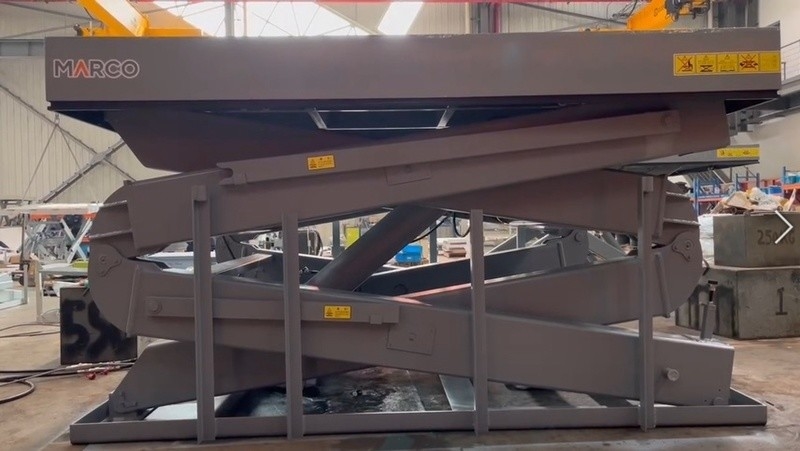

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 0

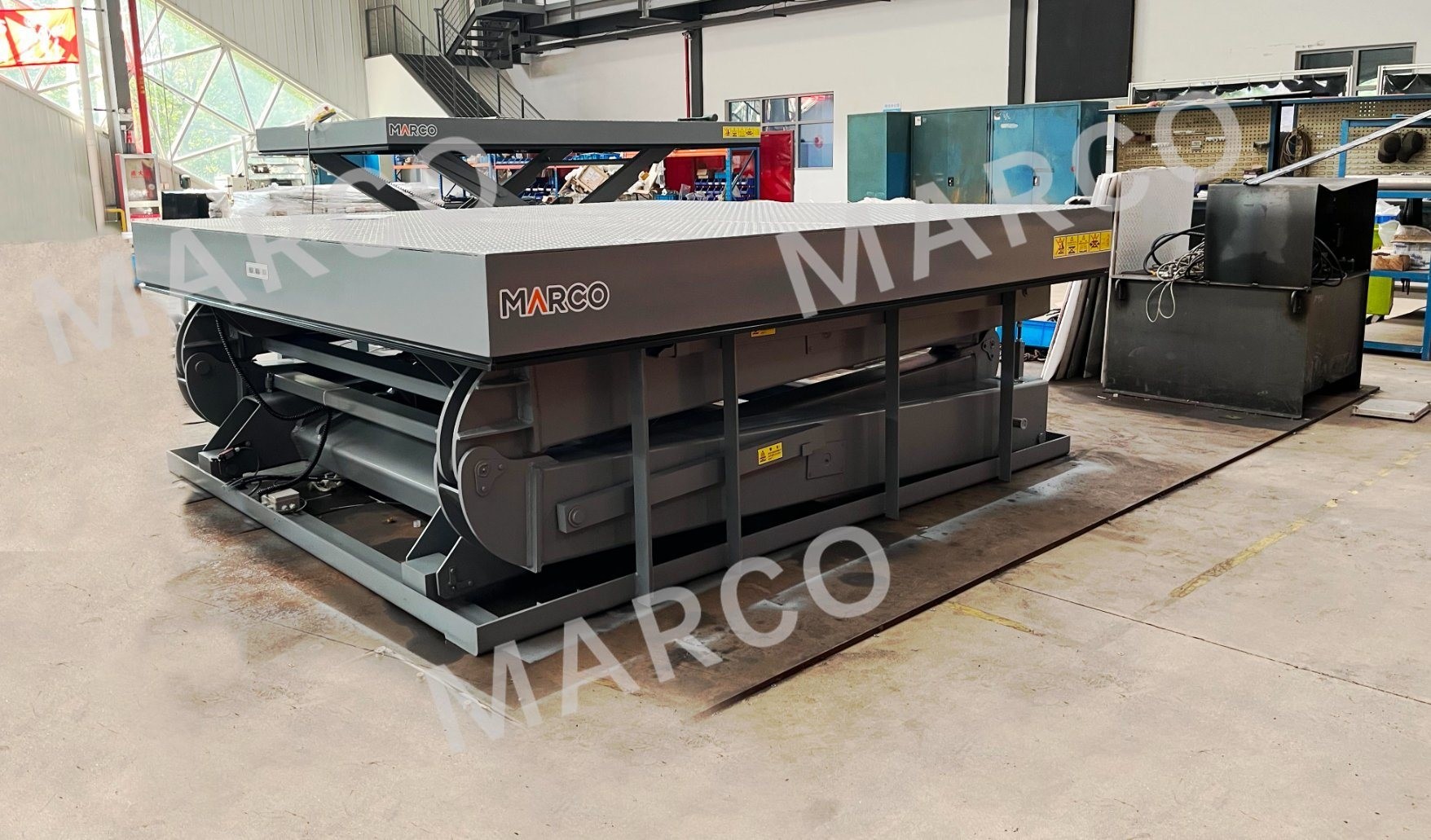

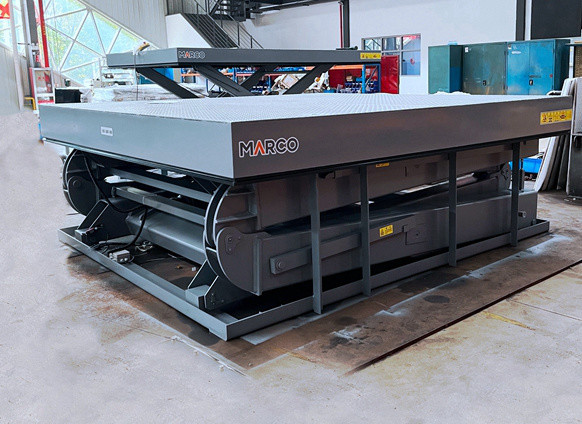

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 1
M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 2

Company Profile

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 3

Our Workshop

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 4

Certifications

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 5

Exhibition

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 6

Packaging & Shipping

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 7
